1. The Introduction of The 13AGW Extra Soft Silicone

13AWG extra soft silicone wire is a kind of cable made of silicone rubber raw material combined with environmentally friendly pure copper wire.

The temperature resistance range is - 60°C- 200°C, and the color can be customized according to your requirements. Both the rubber compound and the copper wire passed the SGS test report.

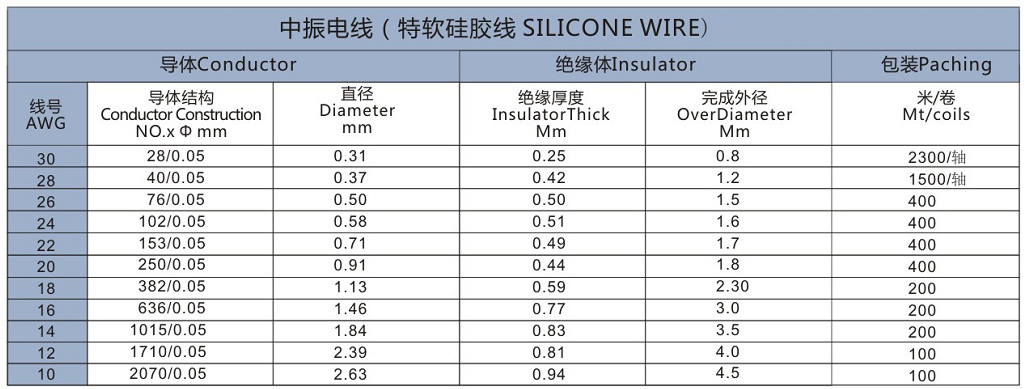

2. The Parameter of The 13AGW Extra Soft Silicone

●Nominal voltage : 600V

●Temperature Range : -60°C~+ 200°C

●OD.Tolerance : +0.05-0.1MM

●Conductor :Tinned Copper

●Insulator :Silicone

●Flame Retardant Grade: FT2/VW-1

●Colours :Red-Black-White-Brown-Yellow-Green-Yellow/Green

3. The Application of The 13AGW Extra Soft Silicone

13AWG Extra Soft Silicone Wire is suitable for a variety of household appliances, LED lighting, electronic equipment, lithium batteries, model aircraft, robots, automotive wiring harnesses and other lead-out connecting lines.

4. The Features of The 13AGW Extra Soft Silicone

Many people have heard of silicone wires, but not everyone understands the characteristics of silicone wires, and I don't know what the difference between silicone wires and ordinary wires is. What are the characteristics of silicone wires? Do you need extra soft silicone wires for reactance? Silicone wire has good acid resistance, alkali resistance, antifungal properties, excellent high and low temperature resistance, excellent. Different electrical properties, excellent chemical stability, long service life, resistance to humidity and high temperature environments and a variety of greases.

At the same time, the cable has good flexibility, and has the advantages of waterproof and pressure resistance, and the wire is soft and easy to install. The main chain of silicone rubber is composed of alternating silicon atoms and oxygen atoms. Ordinary silicone rubber is mainly composed of silicon chain bonds containing methyl groups and few vinyl groups. The introduction of ben groups can improve the high temperature and low temperature resistance of silicone rubber. After vulcanization, the properties of silicone rubber are greatly improved.

The heat resistance of silicone rubber materials is closely related to factors such as type, vinyl content (crosslinking density), heat-resistant additives, and the type and amount of fillers, as well as the PH value and water content of the rubber compound. In the selection of raw rubber polymerization catalyst, the neutralization of the remaining catalyst after the reaction, the selection of silica filler and structure control agent are also important factors that affect the heat resistance of silicone rubber.For heat-resistant silicone rubber materials, the increase in hardness will be slower at a high temperature of 250 °C, and the reduction rates of factors such as tensile strength and elongation at break will also decrease accordingly.

The silicone wire and cable of the wire manufacturer is suitable for the high temperature range below the rated voltage of 600V-30KV. The silicone wire has good high temperature and low temperature resistance, flame resistance, radiation resistance, aging resistance, ozone resistance and water resistance.

Silicone wires from wire manufacturers are widely used in lighting, overweight and transportation, machinery, electrical engineering, medical and health, metallurgy, aerospace, new energy, lithium batteries, power generation systems and other high temperature industries, as transmission lines for electrical equipment, control and monitoring Line, power connection line and various control signals, mobile power equipment transmission, etc.

5. Does The Reactance Need Extra Soft Silicone Wire?

Reactance doesn't necessarily require extra-soft silicone wire, but it's fine to have it. Silicone wires are usually composed of conductors and insulating silicone. The hardness is directly related to the hardness of the two materials. Silicone insulation hardness is usually between: 25A ~ 130A, according to customer performance requirements to choose different hardness of silicone insulation. The diameter of the conductor monofilament is usually between: 0.013~0.52mm, and different monofilament conductor diameters are selected according to customer and safety requirements.

Based on the above two points, if the customer wants extra soft silicone wire, it can only choose the small diameter of the monomer monofilament as much as possible, and the silica gel should also be selected as soft and hard as possible according to the actual process. If you blindly seek softness, it may affect the wiring harness processing technology. In the end, it is still necessary to focus on the actual wiring harness processing and the installation and laying effect of the finished connecting line.

It can be seen that the silicone wire has good acid resistance, alkali resistance, antifungal properties, and excellent high and low temperature resistance. Energy, excellent electrical properties, excellent chemical stability, long service life, resistance to humid and high temperature environments and a variety of greases.

6. The Certification of The 13AGW Extra Soft Silicone

7. The Introduction of The Dongguan Zhongzhen New Energy Technology Co., Ltd.

China Zhongzhen New Energy factory is a world leader in 13AWG extra soft silicone wire design and manufacturing, As the OEM Supplier, we are the clear choice for 13AWG extra soft silicone wire follow-on product support. This is the latest product, advanced, durable, good quality , low price, big discount, sufficient stock, provide product price list, support customization, made in China, cheap, if you need, we can provide you price list and quotation.

8. FAQ

Q1: Are you a factory or trading company?

A: We are a 13years factory with more than 20 engineers and have gained the supplier assessment.

Q2: Where is your factory located? How can I visit there?

A: Our factory is located in Gongguan City, Guangdng Province, China,.You can fly to Guangzhou or Shenzhen airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: What's the MOQ?

A: 1000M,The wire will be cut in the length you need, and pack it based on your requirement.

Q4: How can I check your quality?

A: After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Hot tags: 13AWG extra soft silicone wire, Manufacturers, Suppliers, Factory, Wholesale, Customized, Quality, Buy, In Stock, Free Sample, China, Made in China, brands, cheap, discount, price, Price list, quotation, low price, buy discount, fashion, newest, high quality, advanced, durable, easy-maintainable, latest selling, 1 years warranty, classy, fancy

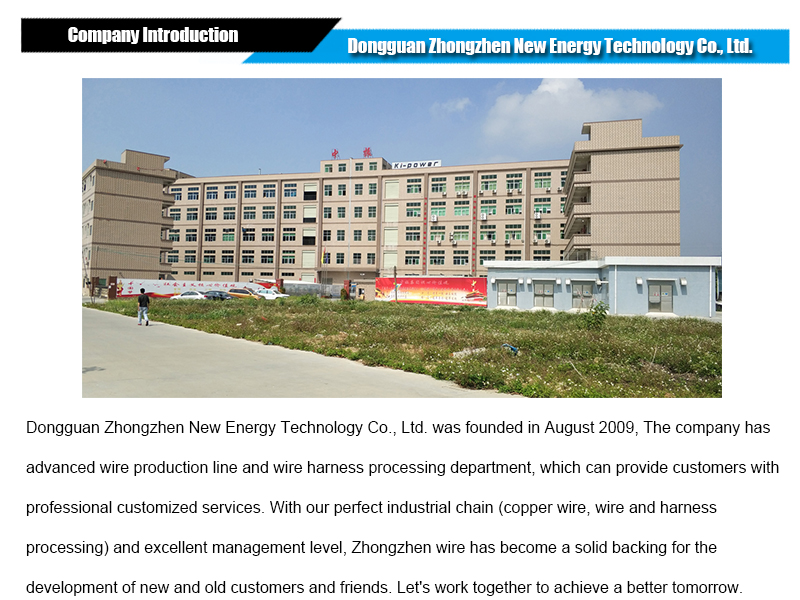

Dongguan Zhongzhen New Energy Technology Co, Ltd was founded in August 2009. The company has advanced wire production line and wire harness processing department, which can provide customers with professional customized services. With our perfect industrial chain (copper wire, wire and harness processing) and excellent management level, Zhongzhen wire has become a solid backing for the development of new and old customers and friends. Let's work together to achieve a better tomorrow. Our company is a high-tech enterprise integrating R & D, production, processing and sales.
