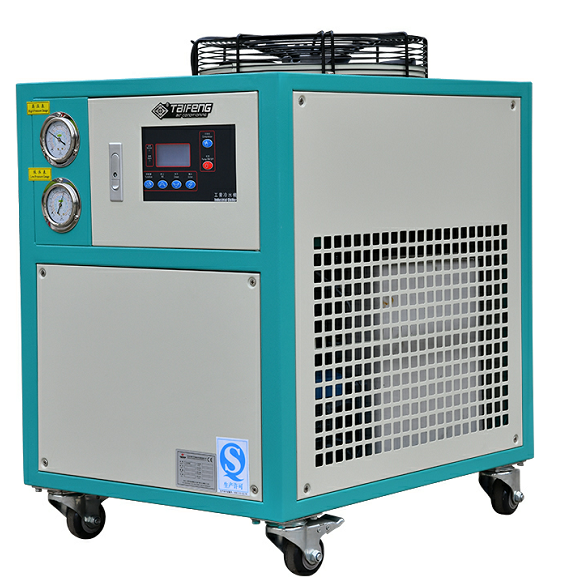

1.5HP air-cooled chiller technical parameters and configuration
1. Standard air-cooled box chiller main parameters table
Item |
Model/Specification |
||
TCA-1.5 |
|||
Control temperature |
℃ |
5℃ to 35℃ adjustable |
|
Standard cooling capacity |
Kcal/hr |
3741 |
|
kw |
4.35 |
||
Total input power |
kw |
1.6 |
|
Power source |
2N-220V-50HZ |
||
Refrigerant |
Name |
R22 |
|
Control method |
Capillaries |
||
Compressor |
Type |
Totally enclosed scroll type |
|
Power |
kw |
1.2 |
|
Condenser |
Type |
Fin type and high efficiency heat exchange purple copper tube |
|
Cooling air volume |
m3 /h |
1800 |
|
Fan Type |
Outer rotor |
||
Evaporator |
Type |
Tank Coil Type |
|
Chilled water flow |
m3 /h |
1.02 |
|
Inlet and outlet water pipe diameter DN |
1 inch |
||
Water Pump |
Power |
kw |
0.37 |
Lift |
M |
13 |
|
Water tank |
Material |
304 stainless steel |
|
Volume (L) |
20 |
||
Mechanical size |
Length (L) |
MM |
700 |
Width (W) |
MM |
525 |
|
High (H) |
MM |
700 |
|
Mechanical weight |
KG |
110 |
|
Other parameters |
Design life of the unit |
10 years |
|
Security Protection |
Compressor overheat protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, anti-freeze protection. |
||
Description: |
1. The minimum adjustable water temperature of 5 degrees; |
||
2. the medium on the refrigeration side of the unit shall be tap water; |
2.the Standard air-cooled box chiller spare parts configuration table:
Main components |
Quantity |
Brand |
Place of origin |
Compressor |
1 unit |
Japan Meiji Scroll Compressor |
Japan |
Electrical Components |
3 sets |
Schneider |
France |
Evaporator |
1 set |
Taifeng |
Dongguan, China |
Condenser |
1 set |
Taifeng |
Dongguan, China |
Pressure controller |
1 set |
Match-Well |
Shanghai, China |
Oil type pressure gauge (high pressure) |
1 pc |
Gefran |
Taiwan |
Oil type pressure gauge (low pressure) |
1 pc |
Gefran |
Taiwan |
Computer Controller |
1 set |
PUMP |
Taiwan |
Expansion valve / capillary tube |
1 set |
DANFOSS Capillary |
Denmark/USA |
Drying filter |
1 set |
ALCO |
United States |
Fans |
1 unit |
Dunli/Weiguang |
China |
water pump |
1 unit |
/ |
China |
Refrigerant |
1 item |
DUPONT |
United States |
3.TAIFENG Standard air-cooled box chiller product design features.
1). Compact structure and smooth operation: the condenser and evaporator of the unit adopt high-efficiency heat transfer tube, and the main unit selects imported high-efficiency fully enclosed scroll compressor, which has many advantages such as compact structure, small volume, light weight and small installation position. Totally enclosed scroll compressor with few moving parts, the compressor adopts flexible compressor, high energy efficiency ratio, low noise, low operating costs, automatic unloading and pressure reduction without direct wear and tear, high reliability. Since it is a continuous compressor without pulsation, the unit has the characteristics of stable performance, low noise, low vibration and smooth operation. 20%-30% higher efficiency than reciprocating compressor;
2). Perfect energy control system: Self-operating adjustment of the unit start and stop according to the change of load, more energy-saving. During operation, the computer control system will change the energy output of the unit according to the change of thermal load of the client. The microcomputer quickly determines the required energy by monitoring the difference between the measured actual load and the user's setting. In multiple systems, it works in an optimized way with the best cooling output and the least power consumption, so that it not only shows excellent performance at full load, but also has high operating efficiency even at partial load;
3). Easy and intuitive operation: the unit adopts microcomputer program controller (Chinese display/digital tube display), select operation according to the prompt menu on the screen/panel, and start the unit by directly touching the button with fingers. The panel can display the operating status of the unit at any time and can display the parameters in the form of text table, which is clear at a glance;
4). protection function of microcomputer controller: protection function of high compressor coil current, high pump current, cold water flow switch, low cold water outlet temperature protection, high temperature protection, compressor overload protection, frequent start/stop protection, abnormal voltage protection, high and low voltage protection, etc;
5). Multiple protection, safe and reliable: in addition to the compressor internal protection module to protect the compressor from over-voltage, phase-loss and overload, the pressure control of the refrigeration system and other devices can make the unit work flawlessly;
6). optimized configuration: high efficiency of refrigeration easy to move, minimize noise and meet environmental requirements (no need to assemble water tower pumps);
7). Easy to install: All components are installed and tested in the factory, and refrigerant and refrigerant oil are charged, so users only need to connect water and electric circuits to put them into use, which reduces installation and commissioning time.

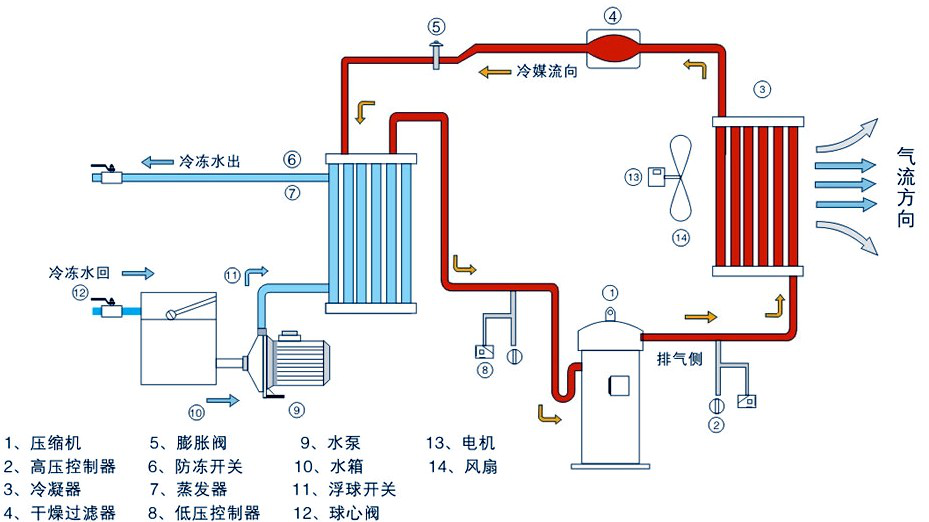

4.Air-cooled chiller working principle

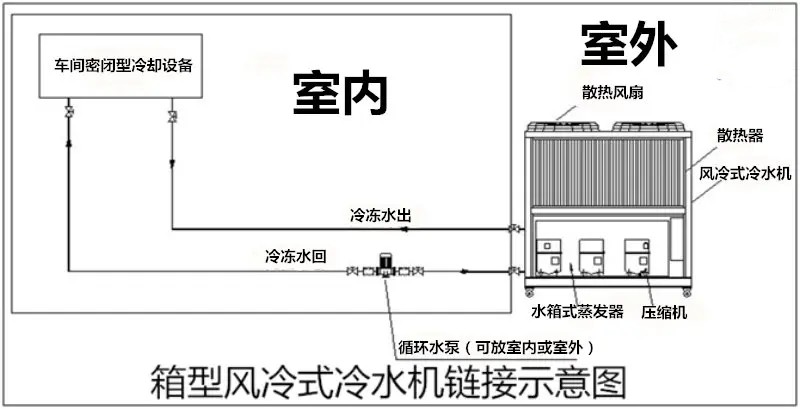

5.Air-cooled chiller installation diagram
6. Air-cooled chiller operating instructions
7. Air-cooled chiller application range
1).Food and pharmaceutical industries:
Such as breweries, juice and beverage factories, dairies, etc. Its applications are food and pharmaceuticals whose production process requires rapid cooling or freezing.
2).Electronics industry:
Such as semiconductor device packaging production line, led display production workshop, etc. Its application is the production process of electronic products with strict temperature requirements.
3).Chemical industry:
Such as the chemical plant reactor cleaning and cooling and chemical experiments of low-temperature environmental testing, as well as the production and assembly line of precision instruments and meters.
4).Textile printing and dyeing industry:
Used for cooling the water used for shaping in the front process of bleaching machine; evaporation and diffusion of dyestuff under high temperature and pressure in the dyeing and finishing process of weaving machine; temperature control when printing on water jet loom.
5).Plating and painting industry:
Used in the preparation and recycling of electroplating bath solution; high temperature preheating treatment when chrome plating of auto parts; heating and constant temperature treatment when electrophoretic painting, etc.
6).Machinery manufacturing industry :
Such as injection molding machine mold cooling; various machine tool hydraulic system oil circuit oil circulation cooling
7).Plastic industry :
Mold temperature control system for plastic calendering processing molding
8).Printing and packaging industry :
Various types of printing post-processing process in the drying and curing treatment
9).Laboratory equipment :
Biological microscope imager for bench cooling
